Learn how BC2Fabric mirrors Microsoft Business Central data into Microsoft Fabric to deliver governed, analytics-ready datasets for reporting and AI-driven insights.

Solution overview

BC2Fabric provides a managed mirroring solution that synchronizes operational data from Microsoft Business Central into the Microsoft Fabric lakehouse. The platform focuses on zero-code connectivity, automated schema handling, and end-to-end observability so finance and operations teams can build Power BI reports or semantic models without managing integration plumbing. The mirroring process captures incremental changes from Business Central APIs, ensuring that the data in the Fabric lakehouse is always up-to-date and reflective of the source system.

Architecture at a glance

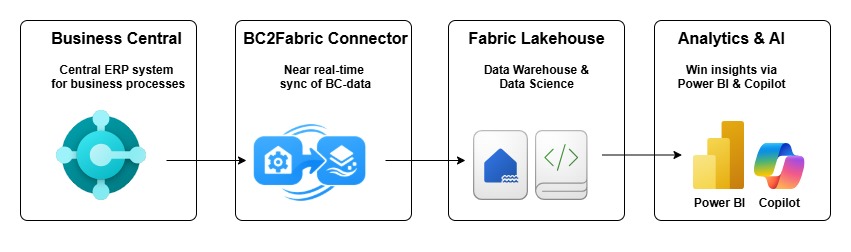

Diagram of the BC2Fabric mirroring architecture from Business Central into Microsoft Fabric
BC2Fabric orchestrates secure data movement from Business Central tenants into a Microsoft Fabric lakehouse.

Main components

BC2Fabric relies on managed components that keep Business Central data synchronized while minimizing operational overhead in Fabric.

  • Workload: Installing the BC2Fabric workload in a Fabric workspace provisions the mirror, table configuration, and authentication to the Business Central tenant so credentials and schema mappings are managed securely.
  • Mirrored database: Data lands in a Fabric mirroring database that automatically aligns table and field names with Business Central. This creates a governed source for semantic models and downstream lakehouses.
  • Refresh pipeline: A Fabric pipeline orchestrates loads from Business Central into the mirrored database. A schedule on this pipeline controls the refresh cadence and triggers on-demand runs when needed.
  • Business Central app: An app inside Business Central hosts the configuration UI for selecting the relevant API query endpoints (including any custom queries) that BC2Fabric should mirror. Once configured, these endpoints are discovered automatically by the Fabric workload.

Runtime model

BC2Fabric is metadata-driven in Business Central—query definitions, selected endpoints, and change-tracking fields live in Business Central—but the execution runs fully in Microsoft Fabric where data is mirrored, governed, and made available for analytics.

Data movement pattern

Loads are pull-based: BC2Fabric calls Business Central API queries rather than waiting for pushed changes. Every query includes DataAccessIntent = ReadOnly so traffic targets the Business Central read-only replica instead of the transactional database. This protects production performance while still delivering incremental changes to Fabric.
